Gallmac 360° Hydrostatic 4WD/4WS Multi-Task Tool Carriers
Mid-Range Wheeled Multipurpose Carrier
Gallmac WMW-100
Equipped with a naturally aspirated Perkins 1004-42T Quadram engine and heavy-duty Clark Hurth steering/driving axles, the WMW-100 provides versatile digging, loading, and lifting.
Gallmac WMW-100 Engineering Specification Table
| Subsystem | Engineering Parameter | US Standard (Imperial) | Metric (SI Units) |
|---|---|---|---|
| Engine | Engine Make & Model | Perkins 1004-42T 244 cu. in. Quadram direct injection | Perkins 1004-42T 4000 cc Quadram direct injection |
| Engine | Max Power & Torque | 65 kW (88 HP) at 2400 RPM / 291 Nm at 1400 RPM | 65 kW (88 HP) at 2400 RPM / 291 Nm at 1400 RPM |
| Transmission | Travel Speed (Forward/Backward) | 0 to 17.4 mph | 0 to 28 km/h |
| Steering | Minimum Steering Radius (Inner / Outer) | 79 in. / 173 in. | 2,000 mm / 4,400 mm |
| Hydraulics | Main Working Pump Delivery | 169 qts./min at 280 bar | 156 lt/min at 280 bar |
| Hydraulics | Auxiliary Gear Pump Delivery | 39 qts./min at 200 bar | 37 lt/min at 200 bar |

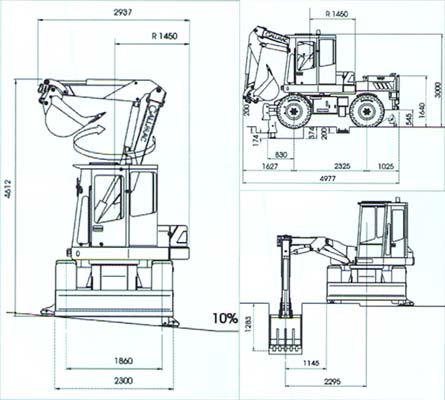

| Dimensions | Max Dimensions (H x W x L) | 118 in. x 91 in. x 196 in. | 3,000 mm x 2,300 mm x 4,980 mm |
| Weight | Operating Weight (Digger / Loader) | 21,495 lbs. / 22,046 lbs. | 9,750 kg / 10,000 kg |

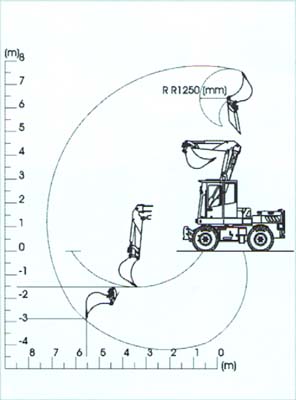

| Digger | Bucket Width Range | 14 to 41 in. | 350 to 1,050 mm |
| Digger | Teeth Breaking Force | 13,349 lbs. | 6,055 kg |
| Digger | Teeth Penetration Force | 7,275 lbs. | 3,300 kg |

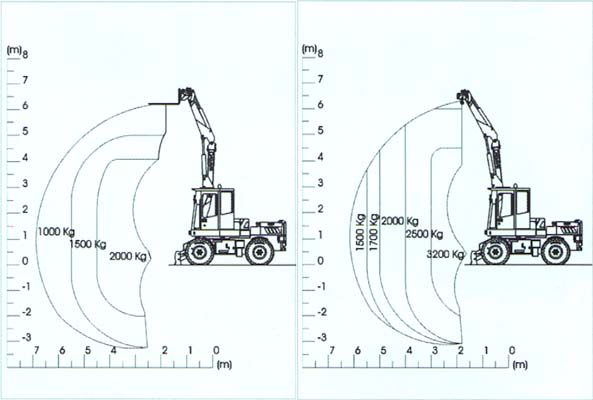

| Elevator | Forks Capacity (Max / Min Radius) | 2,205 lbs. / 4,409 lbs. | 1,000 kg / 2,000 kg |
| Elevator | Hook Capacity (Max / Min Radius) | 3,307 lbs. / 7,055 lbs. | 1,500 kg / 3,200 kg |

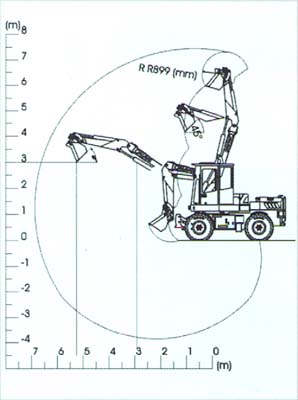

| Loader | Loading Shovel Width & Breaking Force | 91 in. / 9,965 lbs. | 2,300 mm / 4,520 kg |
